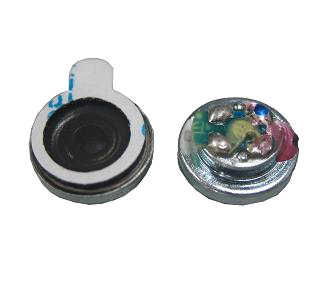

                 UTL10NT1
Product Number
UTL10NT1
Description
Nominal Impedance:32£[°”15% At1.0KHz
Rated Input Power: 3mW
Max. Input Power: 10mW
Mean Sound Pressure Level(S.P.L): 95°”3dB By JH6160 IEC318 Artificalear,at1.0KHz
Frequency Range: F0~20000Hz
Distortion: 5%Maximum At 0.179V Rated Input At 1.0KHz/Nom Power
Lowest Resonanve Frequency(F0): 750Hz°”20%
Size: 10 x 5.5(H)mm

* Rated Impedance, Power, Resonant Frequency, Sound Pressure Level, Magnet Size can be changed according to customer requirement
