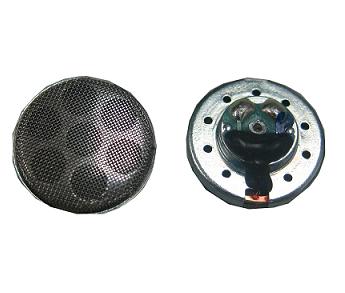

                 UTL13NT9
Product Number
UTL13NT9
Description
DC Resistance: 22[
Rated Noise Power (in free air): 2mW(100-8000Hz)
Short Term Maximum Power (in free air): 5mW(100-8000Hz)

Sound Pressure Level(at 179mvms,1KHz): 1003dB with IEC318 Coupler
THD: <50%(at 179mVrms, 100-350Hz)
<15% (at 179mVrms, 350-600Hz)
<3% (at 179mVrms, 600-5KHz)

Bass Resonance Frequency: 20020%Hz in free air
Size: Dia 13mm

* Rated Impedance, Power, Resonant Frequency, Sound Pressure Level, Magnet Size can be changed according to customer requirement
