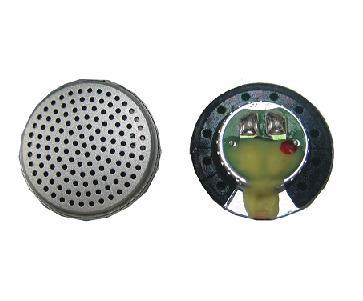

                 UTL146NT10
Product Number
UTL146NT10
Description
SPL:110dB 2dB at 1khz (Input : 179mVrms)
Rated Power:4mW (0.31Vrms)
Max Power:8mW (0.56Vrms)
Impedance:30[10% (Input : 179mVrms)
Frequency Range:100Hz ~ 10kHz
T.H.D:Less than 10% at 1khz (Input : 179mVrms)
Load Test:4mW(0.31Vrms) / 96Hr / White Noise(EIA filter)
Dia: 14.6 x 6.2(H)mm

* Rated Impedance, Power, Resonant Frequency, Sound Pressure Level, Magnet Size can be changed according to customer requirement
