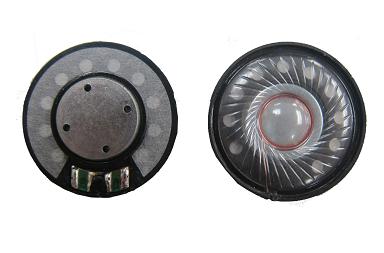

                 RM40H7.4A32DRJ12.5
Product Number
RM40H7.4A32DRJ12.5
Description
Output SPL:110dB ¡Ó 3dB at 1khz 0.179Vrms
Rated Power:0.02W (0.8Vrms)
Max Power:0.04W (1.13Vrms)
Impedance:32£[¡Ó15% at 2KHz 0.3Vrms
Frequency Range:20Hz ~ 15kHz
Magnet Size:12.5mm
Size: 40 x 7.4(H)mm

* Rated Impedance, Power, Resonant Frequency, Sound Pressure Level, Magnet Size can be changed according to customer requirement
